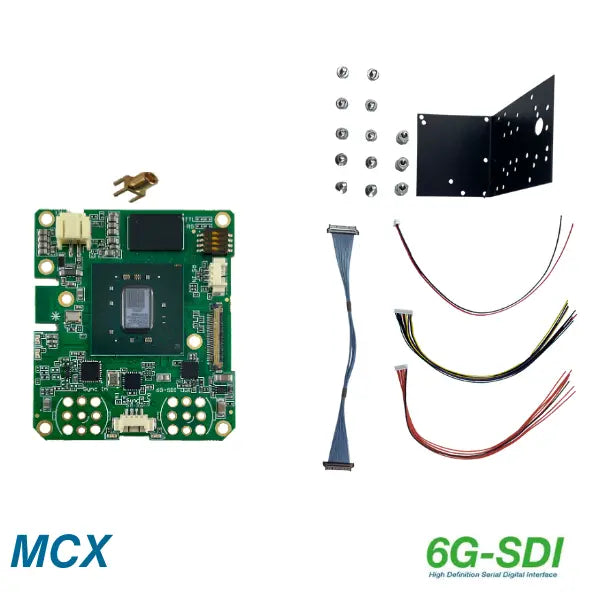

Twiga MCX 6G-SDI 4K Interface Board Kit

Details The 6G-SDI interface board outputs a 4K image or a region of interest in 720p or 1080p (1080p50/59.94, 1080p25/29.97, 720p 50/59.94). You can move the region of interest position within the 4K image and switch instantaneously from one to the other without restarting the camera. The new Twiga 6G-SDI module converts the native video signal from the Sony FCB 4K models into the 6G-SDI standard. All the camera resolutions and frame rates are supported. Take advantage of the full range of HD resolutions the Sony 4k camera offers (up to 2160p 29.97) and much more... Compatible with Sony FCB-ER8530 and FCB-9500H Specifications Digital video output 6G-SDI SMPTE-ST2081 SDI Connector MCX Sync input Molex connector BNC by default, SMB or MCX Optional Video Format Up to 2160p 29.97 Video Format Configuraiton DIP switches Camera Communications VISCA-Default: RS232 Level, TTL optional Operation Temp 0 to 60 C Regulation EMC FCC part 15, PCB: UL
