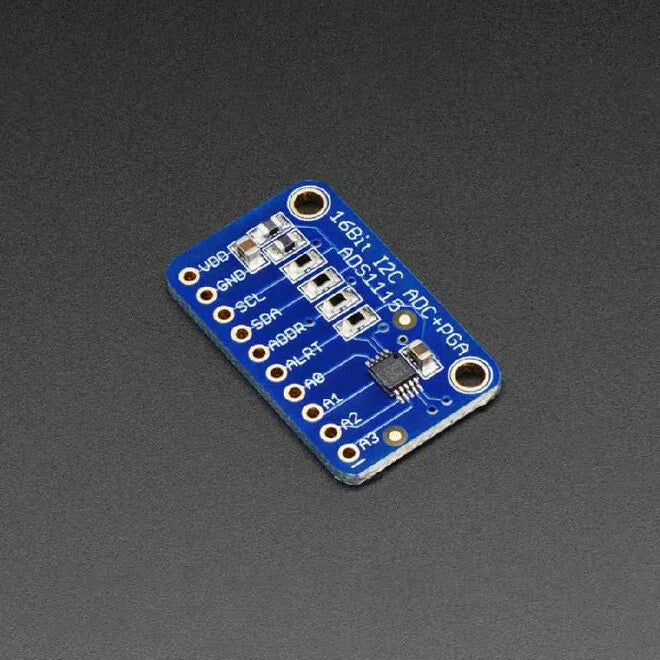

ADS1115 16-Bit 4 Channel ADC
shop.robotistan.com

ADS1115 16-Bit 4 Channel ADC

$7.65
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

Robotistan

View Store

ADS1115 16-Bit 4 Channel ADC The UNIT UT33D+ Digital Multimeter can be used for microcontrollers without an internal ADC or for high-resolution analog measurements. With the ADS1115 integrated circuit, it has the capability to perform 16-bit resolution measurements at a rate of 860 per second. The built-in amplifier allows low-level signals to be amplified by 16 times. It can operate with voltage ranging from 2V to 5V. This board uses I2C interface for communication and can be assigned 4 different addresses using soldered jumper wires. This allows for the use of up to 4 boards for a total of 16 analog input channels. Technicial Specifications: Input voltage: 2V-5V Low power consumption: 150 uA in continuous measurement, auto-off feature Adjustable data rate from 8 SPS to 860 SPS (SPS: samples per second) Single 4 inputs or 2 differential inputs Programmable comparator circuit I2C address: It can be changed from 0x48 to 0x4B. Documents :  ADS1015 entegresine ait datasheet Sample c
