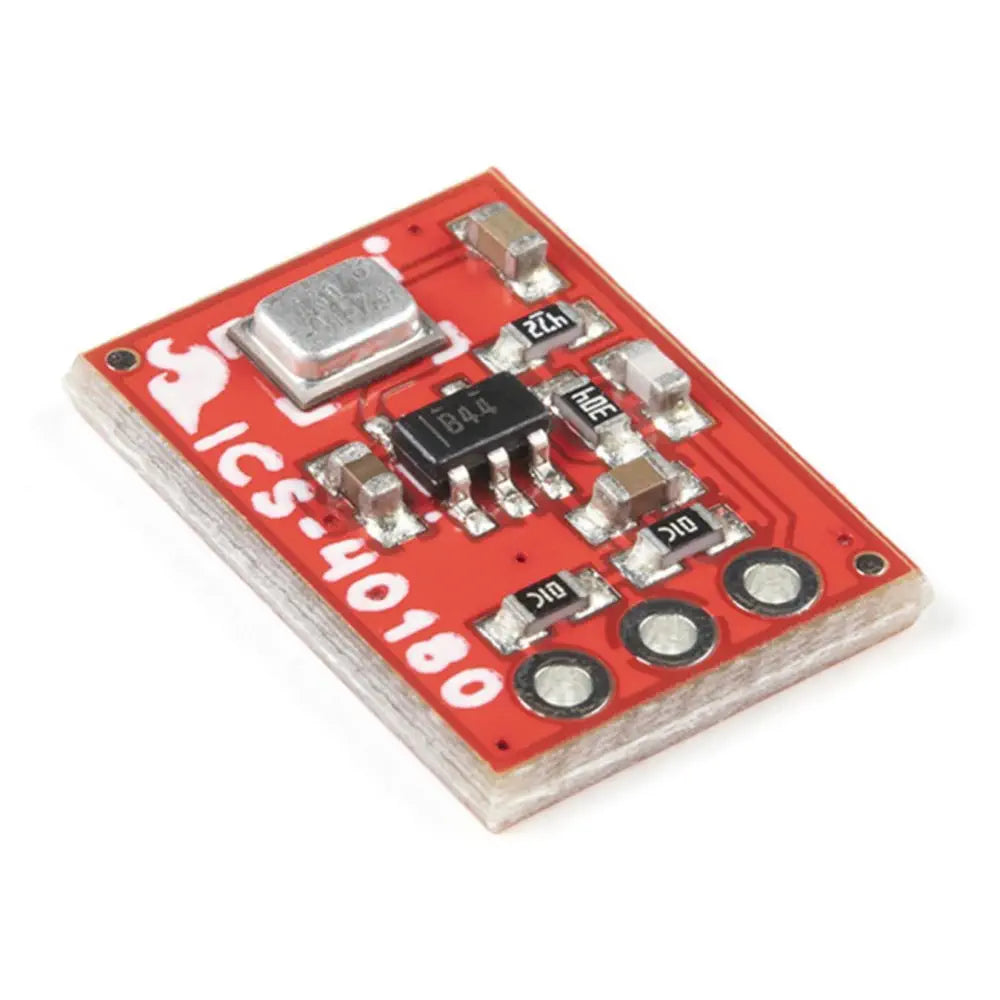

SparkFun Analog MEMS Microphone Breakout - ICS-40180
www.robotshop.com

SparkFun Analog MEMS Microphone Breakout - ICS-40180

$6.95
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

RobotShop USA

View Store

Description SparkFun Analog MEMS Microphone Breakout - ICS-40180 Features an OpAmp Provides 1.5 to 3.6 VDC supply voltage Allows to plug directly into an ADC Output: 40 mW The SparkFun Analog MEMS Microphone Breakout - ICS-40180 features an OpAmp to bring the output of the microphone to a usable level, allowing you to plug directly into an ADC on a microcontroller or something like the SparkFun Spectrum Shield. View more What's Included 1 x SparkFun Analog MEMS Microphone Breakout - ICS-40180 Dimensions Size 0.55 x 0.40 inch (L x W) Links PDF Files SparkFun Analog MEMS Microphone Breakout - ICS-40180 - Datasheet SparkFun Analog MEMS Microphone Breakout - ICS-40180 - Schematics Specifications -3 dB roll off at 60 Hz and 19.7 kHz Supply voltage: 1.5 to 3.6 VDC Output: 40 mW Output impedance: 600Ω SNR: 65 dBA
