Velleman Mini USB Interface Board
www.robotshop.com

Velleman Mini USB Interface Board

$14.49
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

RobotShop USA

View Store

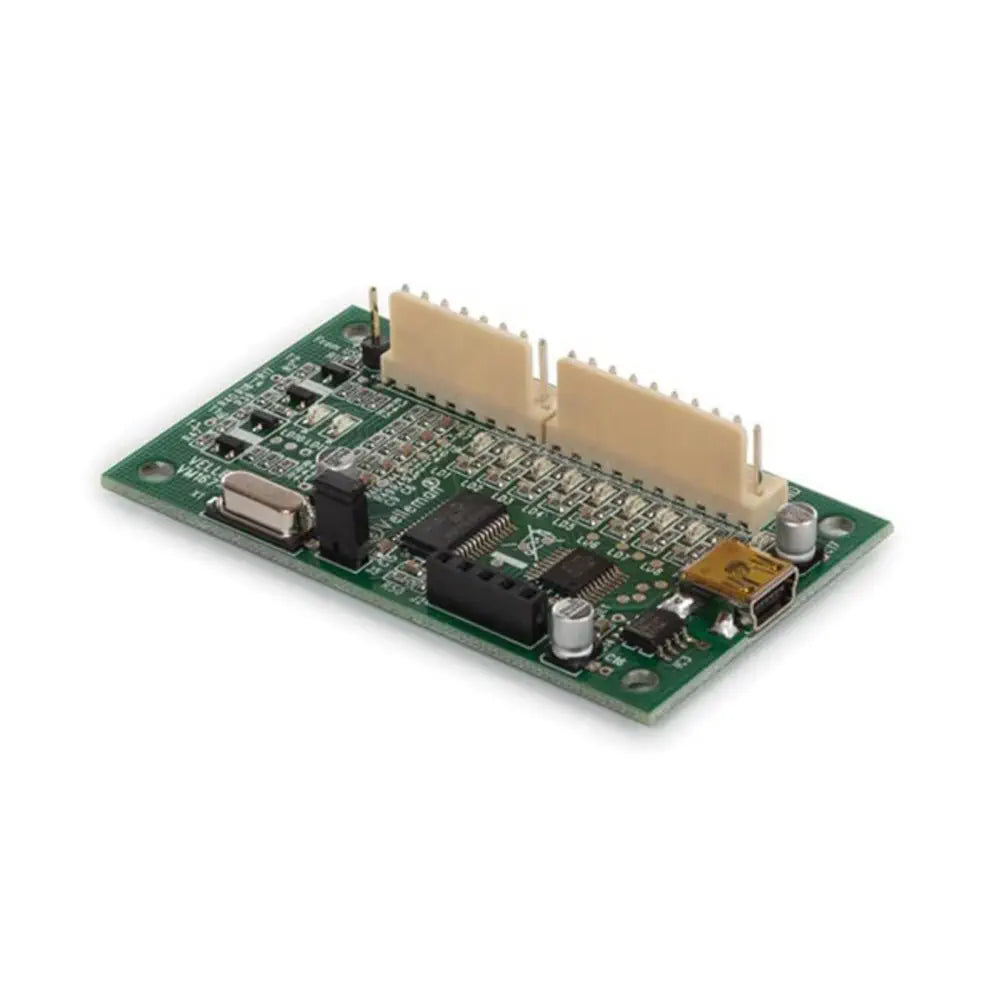

Description Mini USB Interface Board by Velleman Offers a very small, universal USB powered board Features five analog 10-bit resolution inputs Includes a USB cable and a board to wire the cable Onboard LED indication USB 1.1 and 2.0 are compatible Power consumption through USB port: approx. 50 mA The Velleman Mini USB Interface Board offers a very small, universal USB-powered board. It features five analog 10-bit resolution inputs and eight digital 5V inputs/outputs with onboard LED indication and provides power consumption through a USB port approx. 50 mA. View more What's Included 1x Mini USB Interface Board 1x USB cable 1x Board to wire cable Dimensions Size 68 x 40 mm / 2.7 x 1.6 inch Links PDF File Velleman Mini USB Interface Board - User Manual Specifications 5x analogue 10 bit resolution inputs: 0 - 5 V / (30 K) 8x digital 5V inputs/outp
